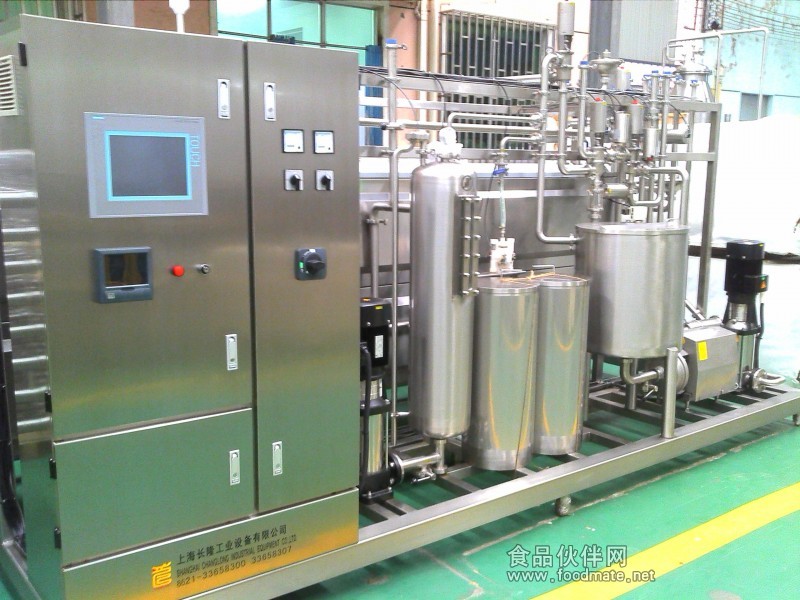

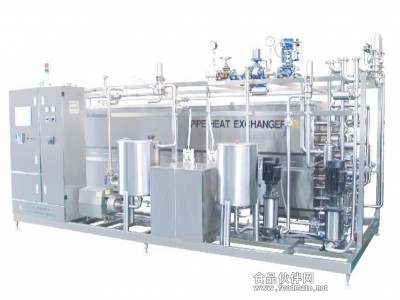

TUBULAR ULTRA-HIGH TEMPERATURE STERILIZER
管式超高温杀菌机
◆产品简介：管式超高温杀菌机的杀菌过程不但可以用于一般的产品，还可以满足客户的特殊需要，如：长时间生产带颗粒的产品、中高粘度的产品，如奶油，纯牛奶多种产品（牛奶，果汁，奶油）高粘度的产品；含有纤维及果肉颗粒较大的产品；酸度较高；对死角具有腐蚀性的产品。对产品120~140℃高温、超高温灭菌。
◆主要特点：不易结焦，工作时间长，PLC控制，操作简单正确；触摸屏显示，实观全面；自带CIP清洗系统，易于清洗；材质可靠，承受压力高；设备维护费用低。量身订造，满足不同客户的个性化需要。
◆Product introduction: The sterilization process of tubular ultra-high temperature sterilizer not only can be suitable for common products, but also can satisfy special requirements of customers, for example: long term production of products with granules or medium and high viscosity. Such as cream, pure milk etc. Products (milk, fruit juice and cream) of high viscosity: products containing fiber and larger pulp granules, products of high acidity and products corrosive to the dead angle. The products can be sterilized at high temperature and ultra-high temperature of 120~140℃.
◆Main features: Hard to agglomerate, long working time; PLC control with simple and correct operation; touch screen display, which is direct and full; self-provided CIP cleaning system, easy cleaning; reliable materials with high pressure withstanding capacity; low maintenance cost. It can be customized to satisfy individualized requirements of different customers.
| 名称Name |
| TG-7-1.6-35 | TG-7-1.6-45 | TG-7-1.6-58 | TG-7-1.6-72 |
| 生产能力 Production capacity | t/h | 2 | 3 | 4 | 5 |
| 换热面积 Heat exchanging area | m2 | 35 | 45 | 58 | 72 |
| 物料进口温度 Temperature of material inlet | ℃ | 5 | 5 | 5 | 5 |
| 物料出口温度 Temperature of material outlet | ℃ | 25 | 25 | 25 | 25 |
| 杀菌温度 Sterilizing temperature | ℃ | 95-137 | 95-137 | 95-137 | 95-137 |
| 保温时间 Heat preservation period | S | 15-4 | 15-4 | 15-4 | 15-4 |
| 冰水耗量 Ice water consumption | multiple | 3 | 3 | 3 | 3 |
| 冷却水耗量 Cooling water consumption | multiple | 2 | 2 | 2 | 2 |
| 电能耗量Energy consumption | kw | 10 | 10 | 12 | 14 |
| 外形尺寸Outline dimensions | mm | 4500*1900*1880 | 4500*1900*1880 | 4500*1900*1880 | 6500*2000*1880 |
技术参数 Technical Parameter
